Poynting RIPPLE-8 X-Polarised Omni-Directional 5G/LTE 8x8 Antenna
Part Number: RIPPLE-8

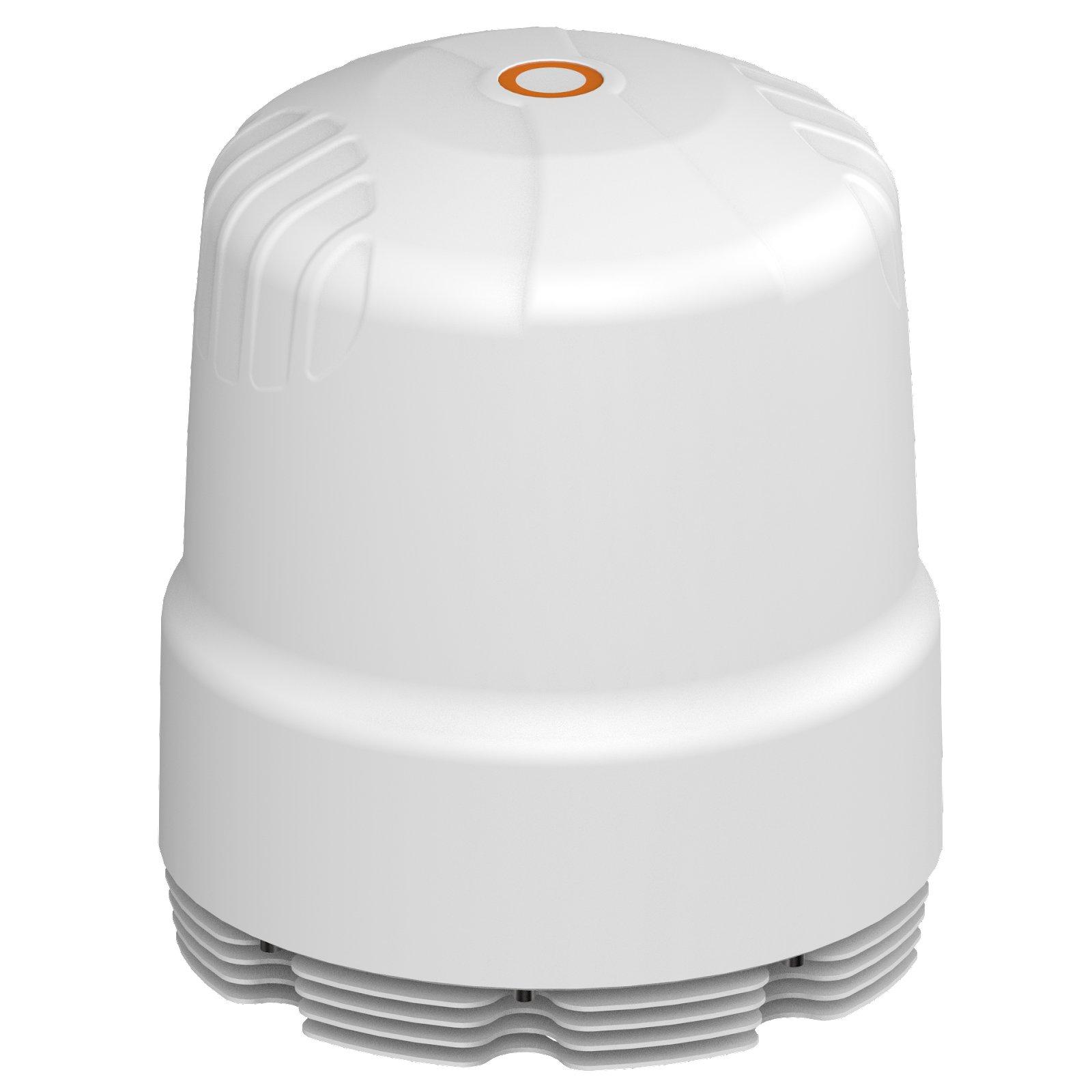

The Poynting RIPPLE-8 enclosure is an X-Polarised Omni-Directional Antenna Array with 5G/LTE and 8x8 multi-MIMO. The RIPPLE-8 is a high-performance antenna suitable for marine and coastal applications and is Band 71 compatible.
Description
The RIPPLE-8 is a marine antenna enclosure designed to fit a variety of router and networking modules, transforming the antenna enclosure into a CPE (Customer Premises Equipment) device, just add your own LTE/5G routers.
This antenna contains 8 cross-polarised, omni-directional antennas with 4 x vertically and 4 x horizontally polarised. The antennas offer wideband coverage from 617 to 7200 MHz, with a peak gain of 9.5 dBi which makes it ideal for multi-router LTE & 5G bonded and aggregated deployments.
The RIPPLE-8 can withstand adverse weather conditions with its weatherproof IP65 rating. The antenna enclosure was designed specifically for marine & coastal applications.

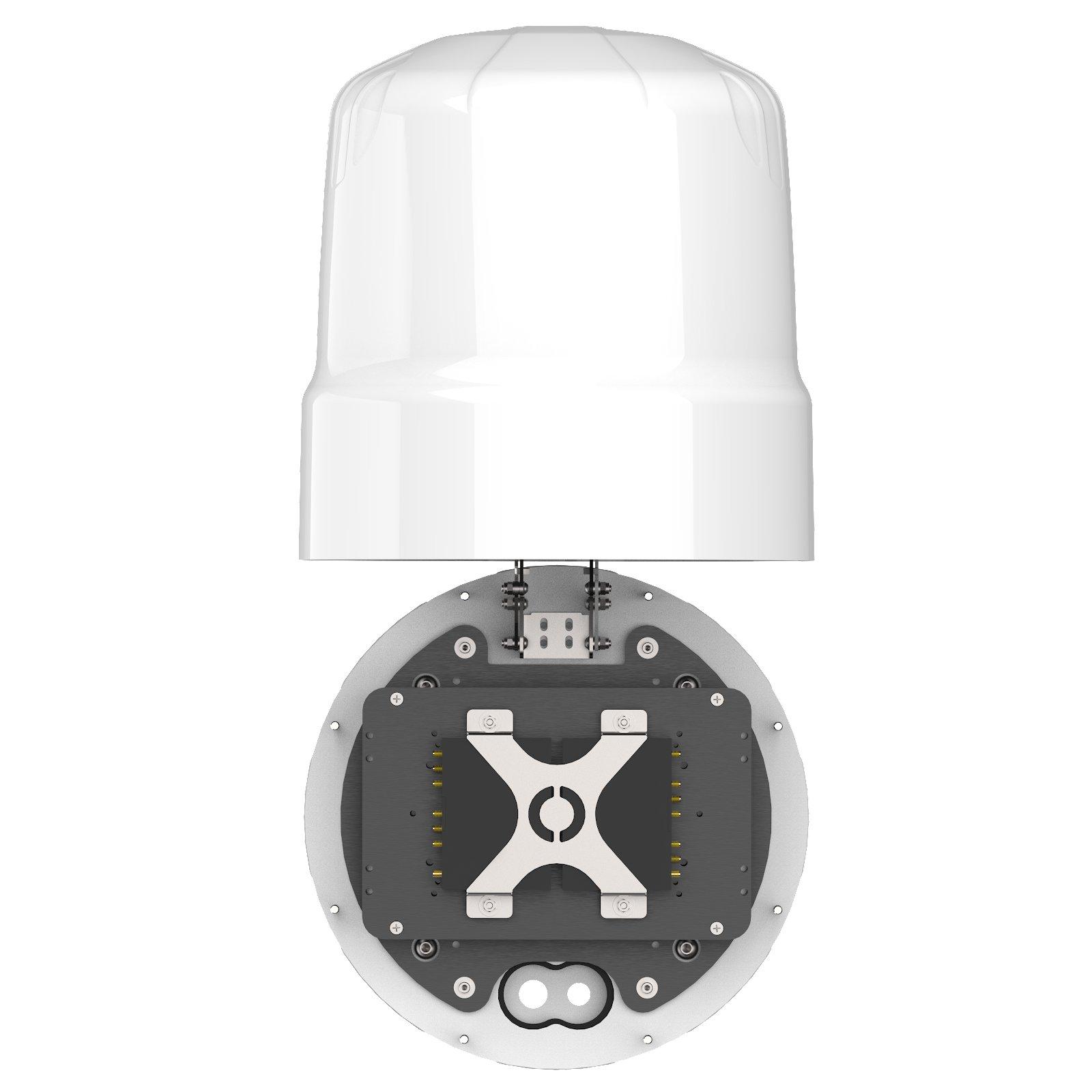

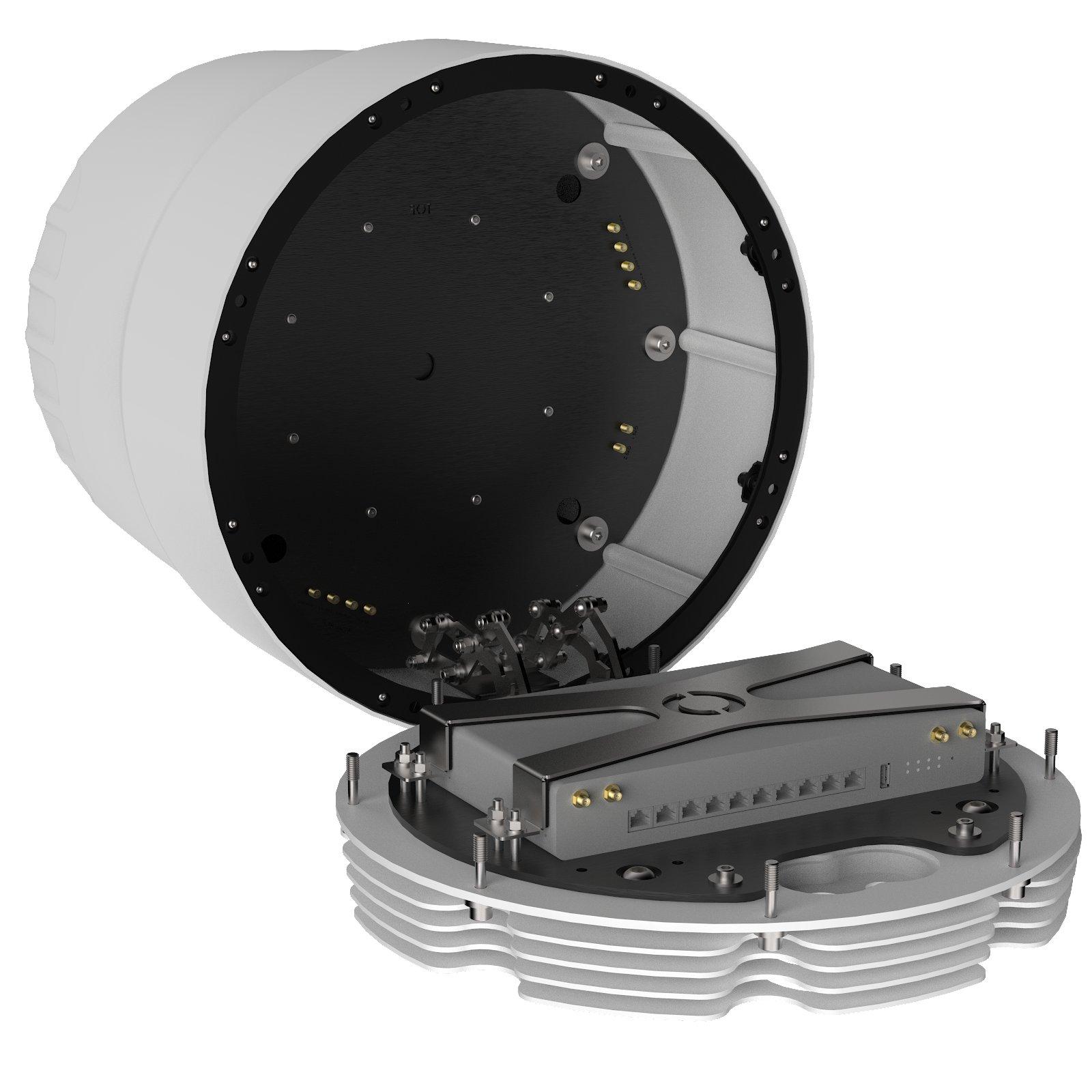

The Ripple enclosure can accommodate routers up to the size of 300 x 250 x 110 mm³, which can be mounted directly onto the base.
The RIPPLE is a circular array of omni-directional antennas that operate in the following frequency bands: 617 – 960 MHz; 1427 – 1517 MHz; 1710 – 2700 MHz; 3400 – 4200 MHz; 5000 – 7200 MHz. It also covers the following Wi-Fi frequency bands: 2400 – 2500 MHz; 5000 – 7200 MHz.
Key Highlights
- High performance, omni-directional marine & coastal antenna
- Up to 8 x 8 MIMO capability for improved performance
- Covers contemporary 5G/LTE band from 617 to 7200 MHz
- Innovative heat sink design for improved temperature regulation
- UV and saltwater protected for marine and coastal applications
- Weatherproof and water-resistant enclosure (IP 65)
- Ports: LTE- Vertical Polarised (x 4); LTE- Horizontal Polarised (x 4); Wi-Fi- Vertical Polarised (x 2); Wi-Fi- Horizontal Polarised (x 2); GPS (x 2)
- MIMO: 2x2 or 4x4 MIMO- LTE; 4x4 MIMO – Wi-Fi
- Polarisation: Vertical & Horizontal
- Peak Gain: 9.5 dBi
- Connector Type: 14 x SMA (F)
- Coax Cable Type: 10 x RG 316 (RA-SMA-M to RASMA-M): LTE & GPS; 4 x RG 316 (RA-RPSMA-M to RASMA-M): Wi-Fi
- Coax Cable Length: 650 mm - LTE, Wi-Fi & GPS
Specification
| WiFi | 1 |
|---|
