Poynting PUCK-1 Antenna

£33.49inc VAT

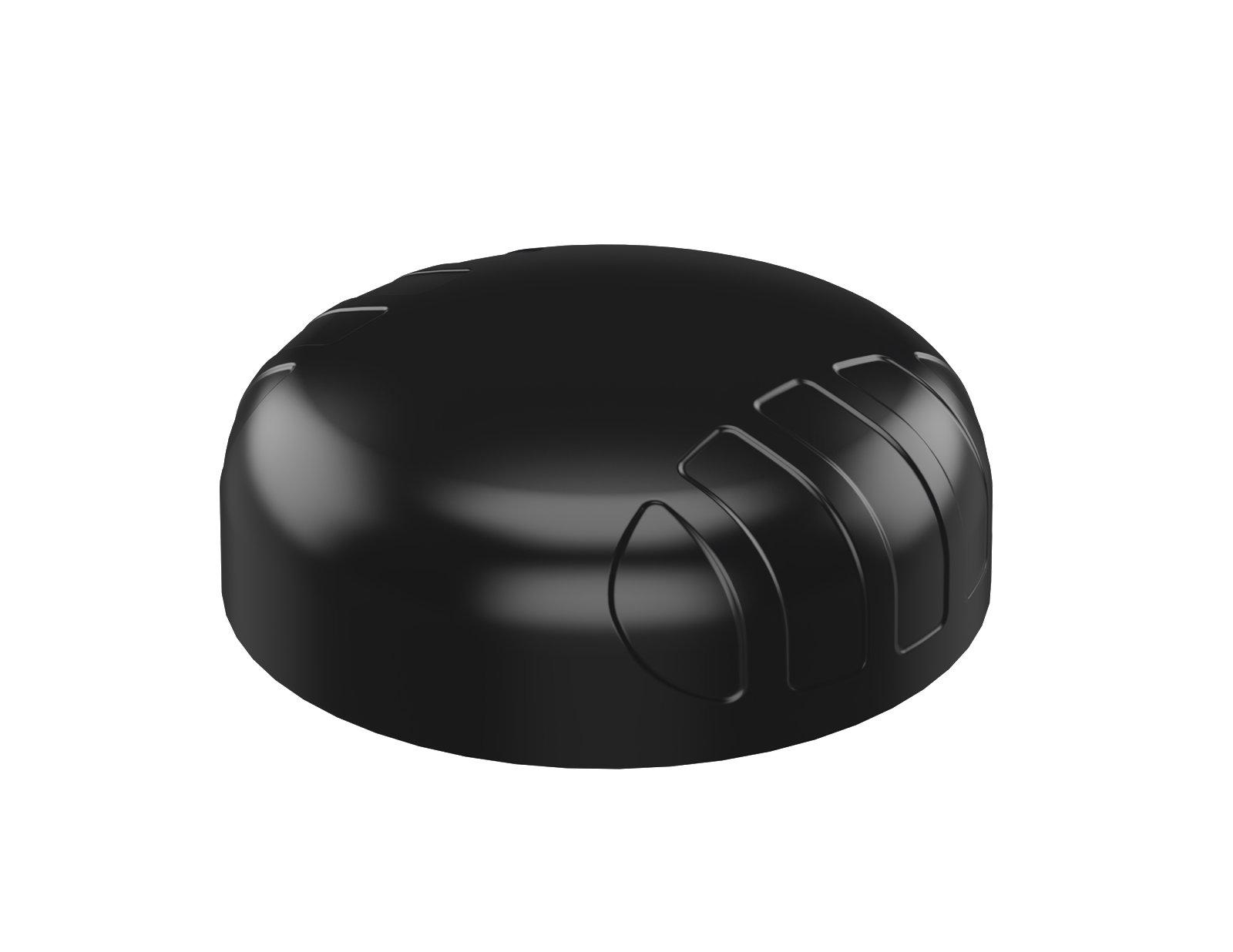

PUCK-1 Omni-Directional LTE Transportation Antenna Mount Detached
PUCK-1 Omni-Directional LTE Transportation Antenna Exploded
PUCK-1 Omni-Directional LTE Transportation Antenna Exploded Mount
PUCK-1 Omni-Directional LTE Transportation Antenna Pole Mount Back
PUCK-1 Omni-Directional LTE Transportation Antenna Pole Mount Side
PUCK-1 Omni-Directional LTE Transportation Antenna Mount Base

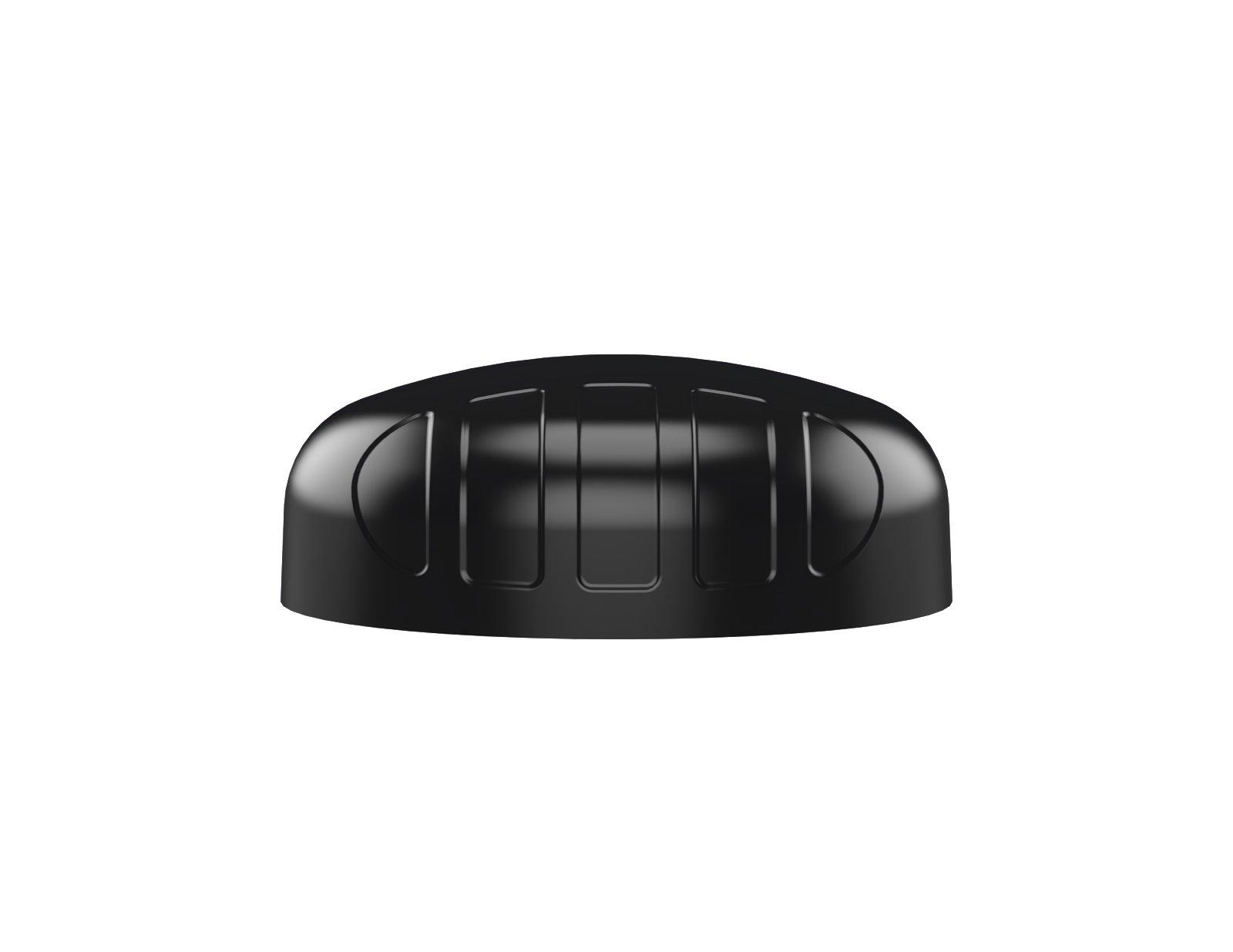

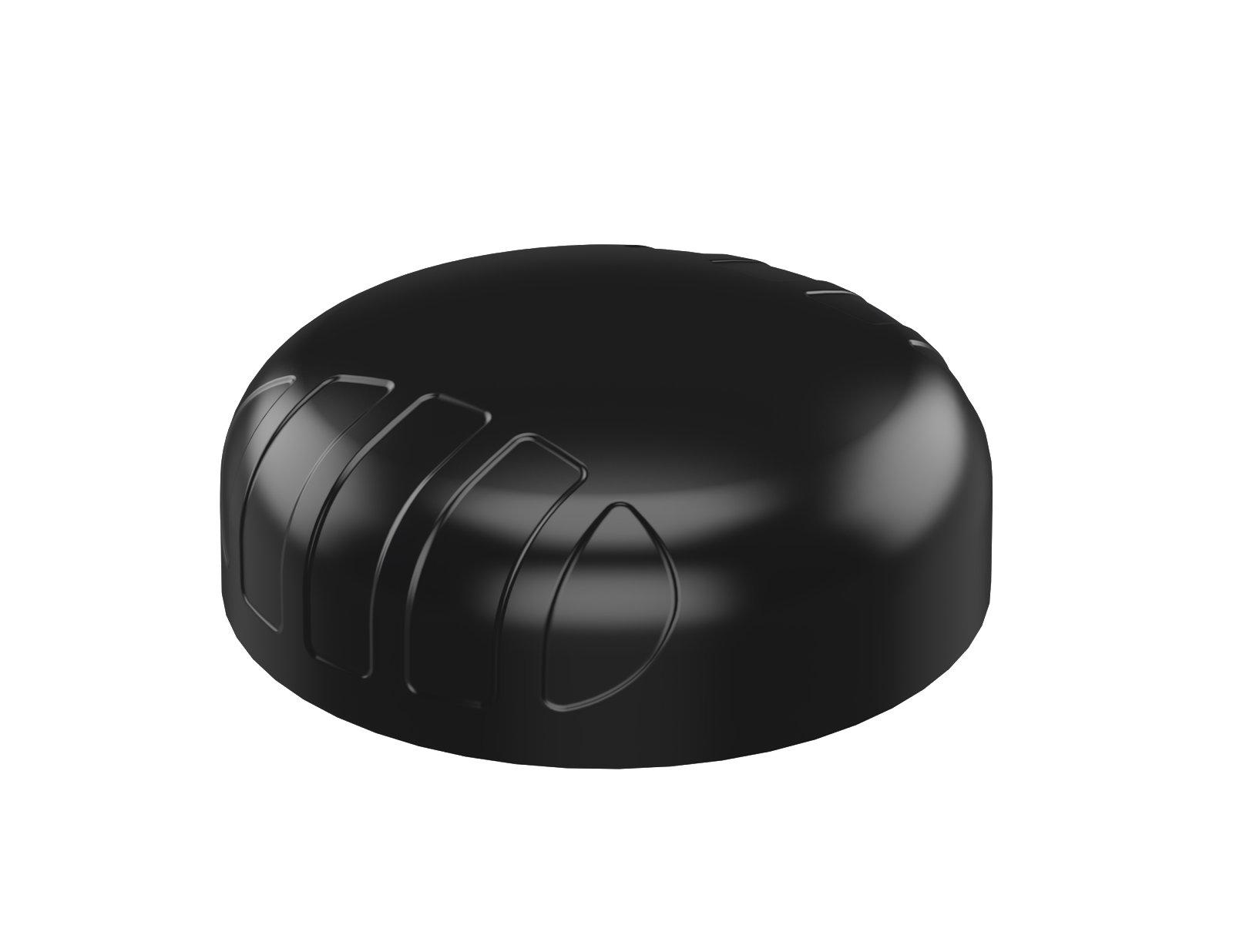

PUCK-1 Omni-Directional LTE Transportation Antenna Top
PUCK-1 Omni-Directional LTE Transportation Antenna Top
PUCK-1 Omni-Directional LTE Transportation Antenna Top

Order by 7pm for Next Day delivery*

*Subject to availability. Next business day only.

Next Day Delivery DPD
Next Day Delivery DPD

Similar Product

XPOL-1 Omni Directional LTE Cross Polarised Antenna Front Angle

Poynting XPOL-1 Omni Antenna

  • 1

    £75.49

  • 5+

    £67.07

  • 10+

    £58.63

inc VAT

Related Products

PUCK-2 Omni-Directional LTE Vandal Resistant Antenna Top

Poynting PUCK-2 Antenna

  • 1

    £62.99

  • 5+

    £55.57

  • 10+

    £48.16

inc VAT

PUCK-5 Omni-Directional LTE Transportation Antenna Top

Poynting PUCK-5 Antenna

  • 1

    £81.49

  • 5+

    £74.39

  • 10+

    £67.28

inc VAT

What can you do as a VoIP Reseller?

Yay.com logo
  • Easily provide VoIP phone systems & Cloud PBX features to customers
  • Enjoy full flexibility to offer the retail rates you want
  • Benefit from the best terms from which build your business
Custom VoIP Reseller Store Fronts

Poynting SISO LTE Antenna, Transport, M2M, 6dBi, PUCK-1

Poynting’s PUCK-1 offers a small profile antenna for use in the IoT/M2M, Smart Meter, Smart Utilities, Transportation, Marine and the Agricultural/Farming markets. The PUCK (for 2G/3G/4G) covers the 690MHz to 3800MHz band, and the radiation patterns of all radiating elements provide balance between omni-directionality and good radiation abilities at the desired elevation - features that are often overlooked in such a small size antenna.

Price Breaks

  • 1

    £33.49

    inc VAT

  • 5+

    £29.85

    inc VAT

  • 10+

    £26.21

    inc VAT

Availability: 7 In Stock

Want it by tomorrow, 25th September? Order within 6 hours 10 minutes and choose Saturday Delivery at checkout for next day delivery.

Qty:

Manufacturer Part Number: PUCK-1

  • Description

  • Documents

Poynting PUCK-1 Antenna

The PUCK-1 Antenna provides excellent performance at higher frequency bands, where performance is critical for LTE throughput and connection stability.

For further information about using the PUCK-1 in marine settings, read our blog!


PUCK-1 dimensions: 98 mm x 98 mm x 39 mm


A-PUCK-0001-V1-01 Key Highlights

  • LTE High Performance Multi-Frequency
  • 2G/3G/4G/LTE Antenna (5G Ready)
  • Frequency Bands: 690-960 MHz | 1710 - 2700 MHz | 3200 - 3800 MHz
  • Ground plane independent
  • Robust, vandal resistant and water proof (IP68)
  • Ideal for transportation, marine and IoT/M2M use
  • Ultra-versatile mounting options for easy installation
  • Max Gain: 6 dBi
  • Coax Cable Length: 2m
  • Connector Type: SMA (male)

Applications

  • Smart Utilities: Smart Power, Gas & Water Metering
  • Smart Buildings: Climate control, access control, security, irrigation
  • Digital Signage
  • Warehouses & Logistic systems
  • Industrial factory automation, robotic machinery and other M2M systems
  • Transport (Busses, Utility & Public Safety)
  • Mining Vehicles & Machinery Communications, Telemetry and Automation (M2M & IoT)
  • Agricultural Machinery
  • Marine: small boats, yachts near to coastlines or inner waters

What's in the Box?

  • A-PUCK-0001-V1-01
  • Ø20 Threaded Spigots (Up to 60mm clamping thickness)
  • Adhesive Surface Mount
  • Mounting & Magnetic Mount
