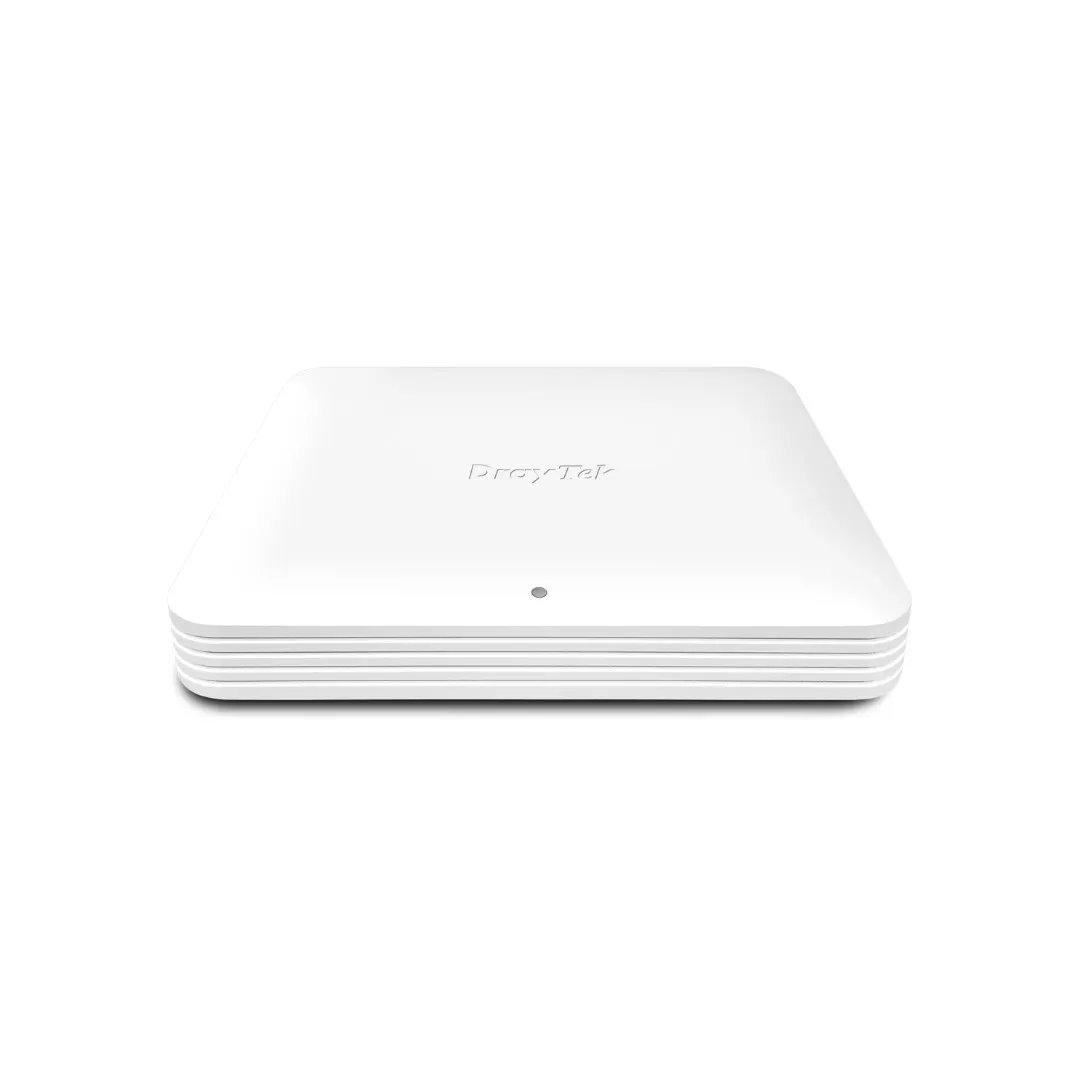

DrayTek VigorAP 1070C 4x4 BE19000 Tri-Band Wi-Fi 7 Ceiling Access Point
Part Number: VAP1070C-K
30 In Stock
Want it by tomorrow? Order within 18 hours 46 minutes for next business day delivery.
Bulk Pricing
1+
£405.99
5+
Call to quote
10+
Call to quote
The DrayTek VigorAP 1070C is a high-performance, tri-band Wi-Fi 7 ceiling-mount access point delivering speeds up to 19 Gbps. Featuring Multi-Link Operation, 10GbE connectivity, and support for up to 512 clients, it provides ultra-low latency and robust scalability for demanding business environments.
Description
The DrayTek VigorAP 1070C is a tri-band Wi-Fi 7 access point engineered for high-density business environments such as offices and classrooms. Delivering combined link rates of up to 19 Gbps across 2.4GHz, 5GHz, and 6GHz bands, it ensures ultra-fast wireless performance. Equipped with Multi-Link Operation (MLO), the AP enables simultaneous multi-band transmission to reduce latency and improve reliability for critical cloud applications and video conferencing.
For robust wired backhaul, the VigorAP 1070C features a 10GbE port with PoE++ support alongside a 2.5GbE port. It supports up to 512 concurrent clients, utilising advanced MU-MIMO, OFDMA, and 4K-QAM technologies to optimise bandwidth distribution. Security and management are simplified with support for WPA3, 802.1q VLANs, and centralised control via DrayOS 5-based management platforms or VigorACS.
Key Highlights
- Tri-band Wi-Fi 7 (802.11be) technology
- Combined link rates of up to 19 Gbps
- Supports up to 512 concurrent wireless clients
- Multi-Link Operation (MLO) for ultra-low latency
- 1 x 10GbE port with PoE++ support and 1 x 2.5GbE port
- Dedicated 5G antenna for Zero-Wait DFS
- Centralised management via DrayOS 5 and VigorACS
- Advanced security with WPA3 and MAC filtering
What’s in the box?
- VigorAP 1070C
- Mount Bracket (for ceiling mounting)
- Screws (for ceiling mounting)
- RJ-45 Cable (Ethernet)
- Quick Start Guide
Specification
| 2.4Ghz Technology | WiFi 7 (802.11be) |
|---|---|
| PoE Type | PoE++ |
| 2.4Ghz MIMO | 4x4 |
| 5Ghz Technology | Wi-Fi 7 (802.11be) |
| 5Ghz Throughput | 5765 Mbps |
| 5Ghz MIMO | 4x4 |
| Location | Indoor |
| 6Ghz Technology | Wi-Fi 7 (802.11be) |
