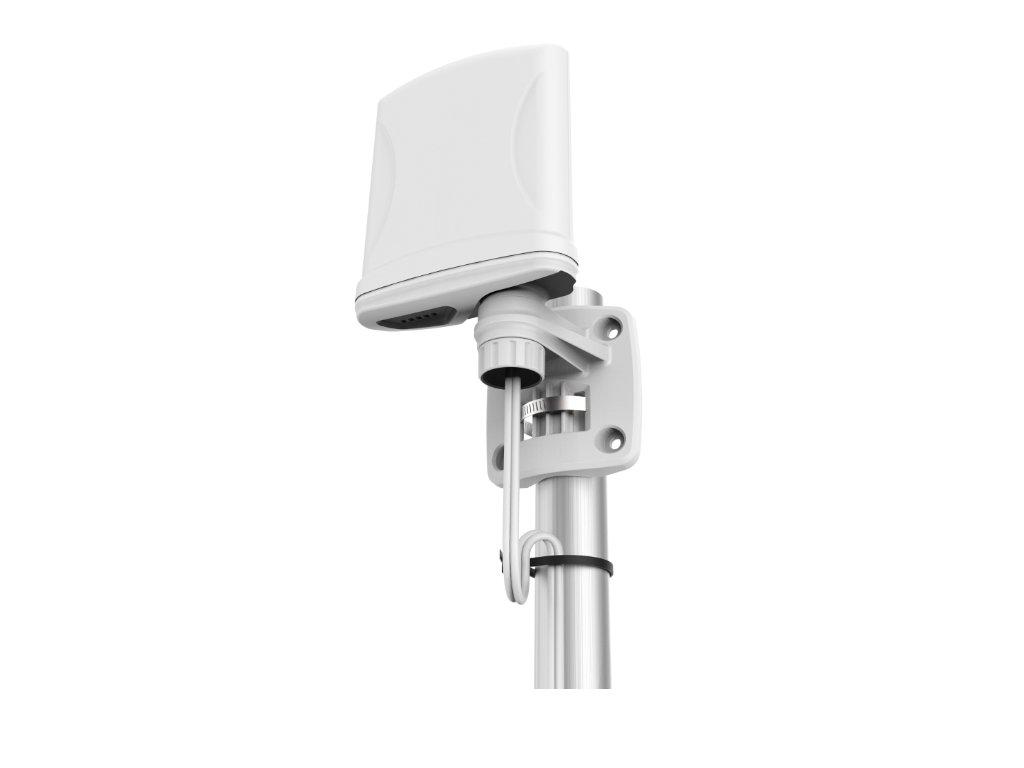

XPOL-1 Omni Directional LTE Cross Polarised Antenna Front Angle

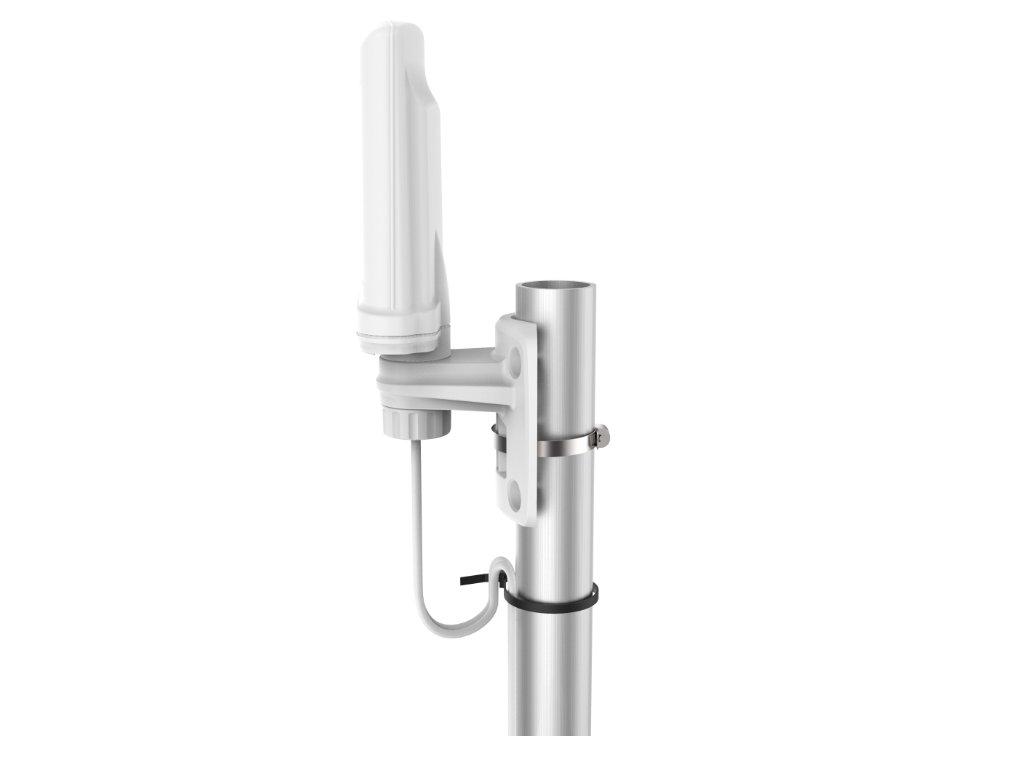

XPOL-1 Omni Directional LTE Cross Polarised Antenna Side Angle

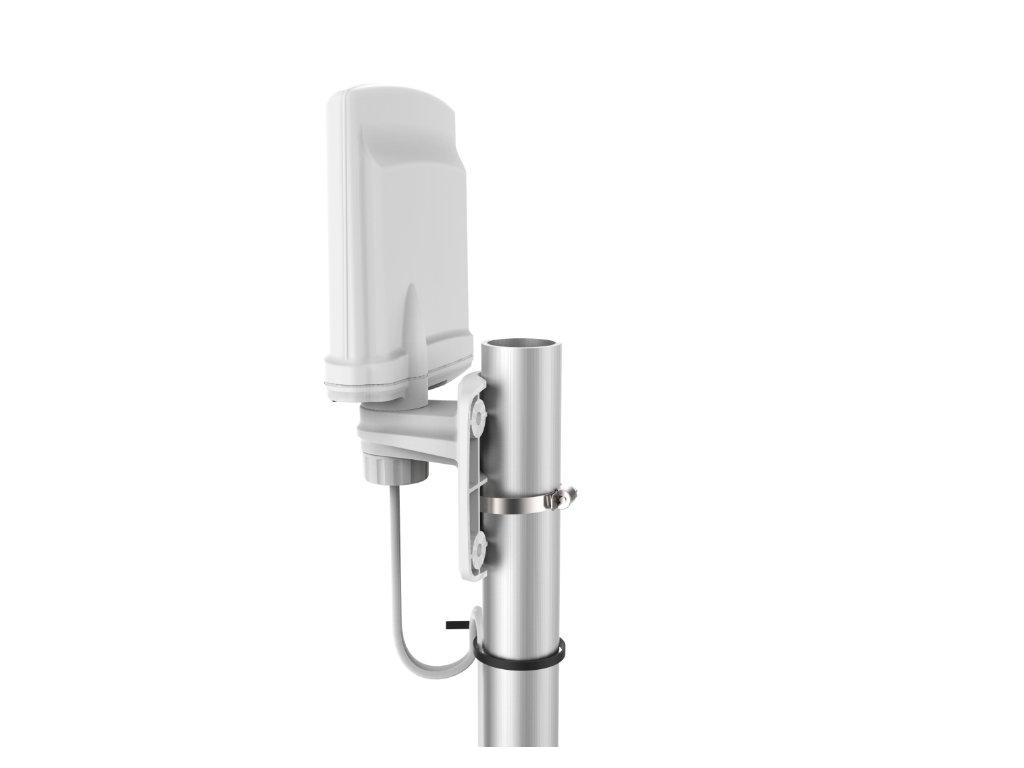

XPOL-1 Omni Directional LTE Cross Polarised Antenna Back Angle

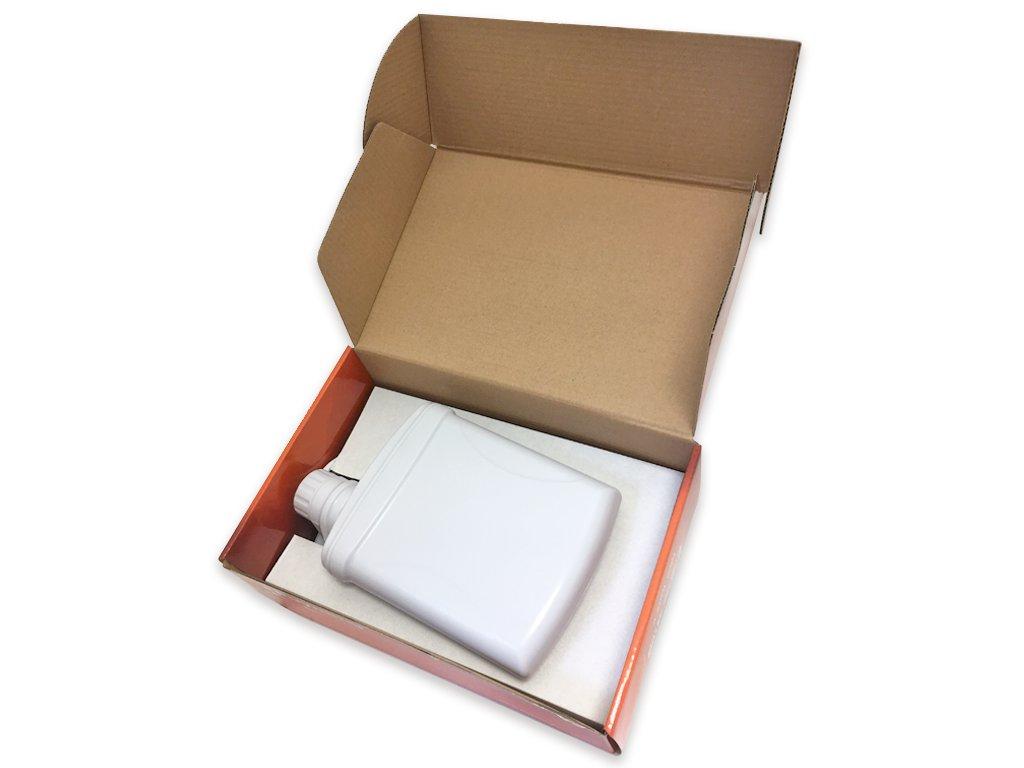

XPOL-1 Omni Directional LTE Cross Polarised Antenna Open Box

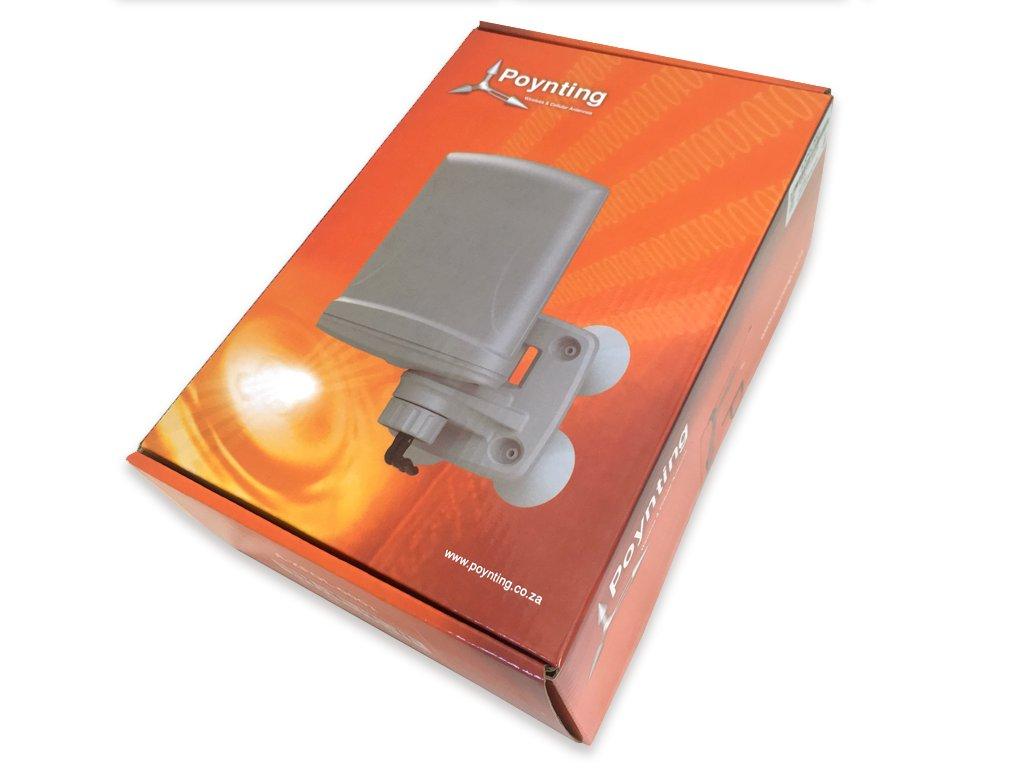

XPOL-1 Omni Directional LTE Cross Polarised Antenna Box

Poynting XPOL-1 Omni-Directional LTE Cross Polarised MIMO Antenna

Part Number: XPOL-1

Discontinued

This product has been discontinued. See the latest model: Poynting XPOL-1-5G 2x2 Antenna

Poynting's XPOL-1 Omni MIMO Antenna provides an innovative solution for the signal enhancement of 4G/3G and 2G networks. Incorporating two separately fed ultra wideband elements in a single housing, the antenna is equipped to provide client-side MIMO and diversity support for your network.

Description

The XPOL-1 Indoor / Outdoor Cellular Antenna is a cost-effective solution that will enhance signal reception and throughput, increase signal reliability, ensure higher data throughput and provide a stable, high quality connection. Ideal for any application using the GSM network (LTE/HSPA/3G/EDGE/GPRS).

Please note, XPOL-1 does not support Three's new 4G frequency band, whereas the XPOL-2 (V2) does.

XPOL-1 dimensions: 204mm x 140mm x 95mm

For further information about whether the XPOL-1 or XPOL-2 is best for you , read our FAQ!

Key Highlights

  • Two antennas in one enclosure
  • Medium gain (Max: 4dBi)
  • Backwards compatible with 3G/2G technologies
  • Wideband - covers wide frequency band
  • Frequency Bands: 790 - 960 MHz & 1710 - 2700 MHz
  • Window, wall or pole mountable
  • Lightweight
  • Weather and vandal-proof enclosure
  • 2 x 5m Cable
  • Cable type: HDF 195
  • Connector type: 2 x SMA (Male) - factory mounted

What’s in the box?

  • Antenna: A-XPOL-0001
  • 4 x Window Suckers
  • Window Suckers
  • Cable clamp
  • Silicone gland seal (inside nut on bottom)
  • Cable clamp
  • Wall knock in screws (set)
  • SMA Grip extender
  • Sucker mounting pins (x4)

Specification
